Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KSH
Product Info
- KSH series are designed to rotate the piping up to 360° when pressurized fluid is transmitted
- Able to rotate while fluid is being transmitted

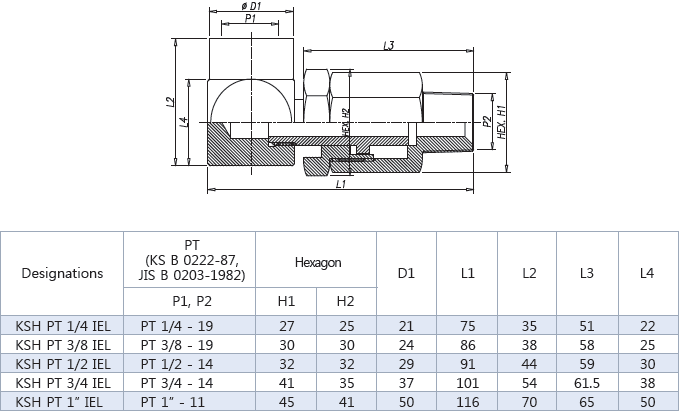

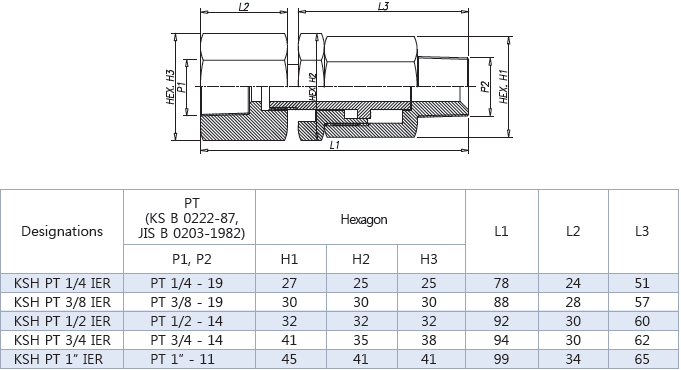

Specification
| Body Material | STEEL | ||||
|---|---|---|---|---|---|
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1" |
| Pressure Capacity (kgf/cm2) |
200 | ||||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | ||
| NBR | -20℃~+80℃ | standard | |||
| VITON | -20℃~+130℃ | Non-standard | |||

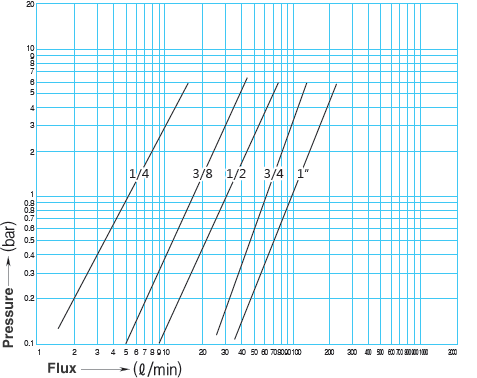

Flux&Pressure
Series KSH
