Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry

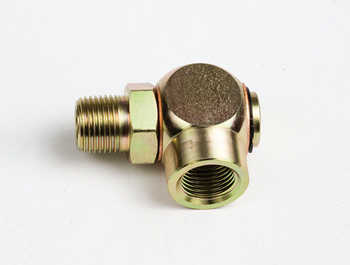

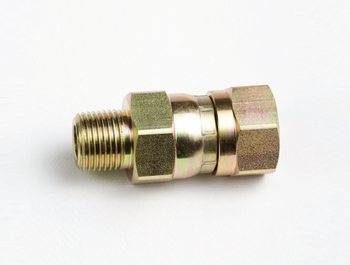

Series KSL
Product Info
- KSL series are designed to rotate the piping up to 360° when pressurized fluid is transmitted
- Unable to rotate while fluid is being transmitted

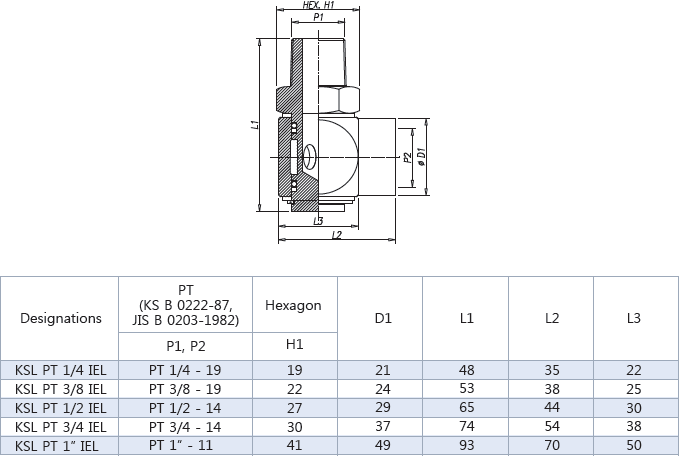

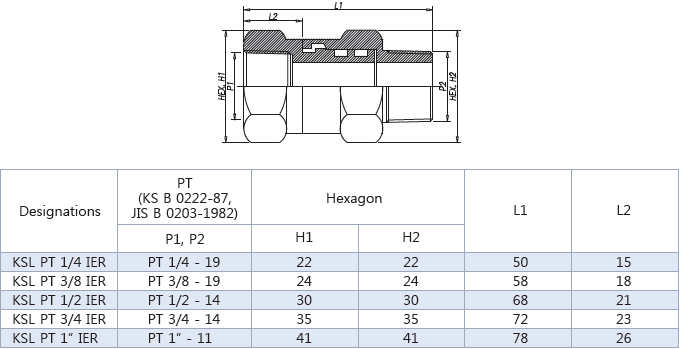

Specification
| Body Material | STEEL, BRASS | ||||
|---|---|---|---|---|---|
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1" |
| Pressure Capacity (kgf/cm2) |
70 | 65 | 60 | ||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | ||
| NBR | -20℃~+80℃ | standard | |||
| VITON | -20℃~+130℃ | Non-standard | |||

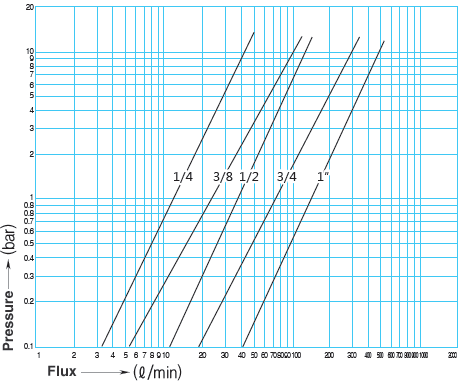

Flux&Pressure
Series KSL
