Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KJP/KJB
Product Info
- KJ series are designed for the pressure range of 750kg/㎠
- A quick coupler with the dual-closing function
- Used for high-pressure devices such as portable hydraulic tools, frame-corrective devices, etc.
Compatibility
PARKER 3000, FASTER PVVM, SAFEWAY S30
Specification
| Body Material | STEEL | ||
|---|---|---|---|
| Size | KJP | KJB | |
| Pressure Capacity (kgf/cm2) |
750 | ||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others |
| VITON | -20℃~+130℃ | standard | |
| NBR | -20℃~+80℃ | Non-standard | |

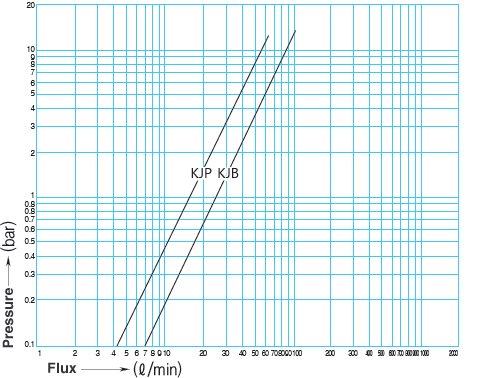

Flux&Pressure

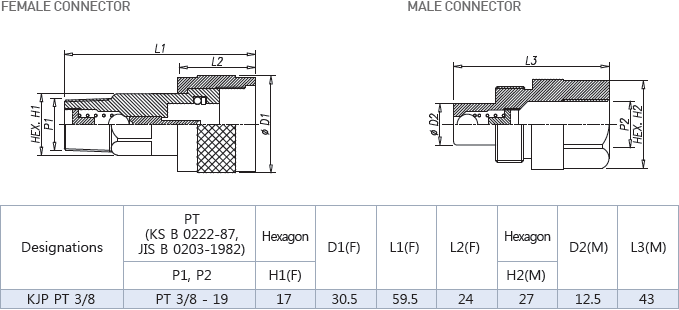

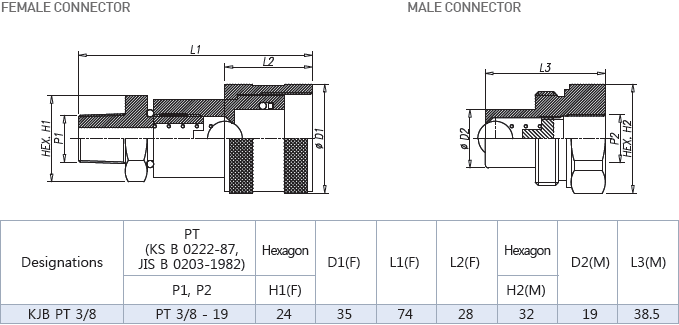

FEMALE CONNECTOR
MALE CONNECTOR
