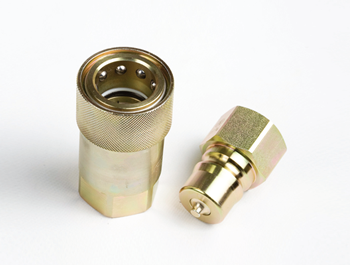

Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KCN
Product Info
- KCN series are designed to resists major shocks
- A quick coupler with the dual-closing function
- Adopted for complicated hydraulic devices in such areas as industry, construction, forestry, and machinery
Compatibility
NITTO HSP
Specification
| Body Material | STEEL | ||||||
|---|---|---|---|---|---|---|---|
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1" | 1 1/4 | 1 1/2 |
| Pressure Capacity (kgf/cm2) |
210 | 180 | |||||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | ||||
| VITON | -20℃~+130℃ | standard | |||||
| NBR | -20℃~+80℃ | Non-standard | |||||

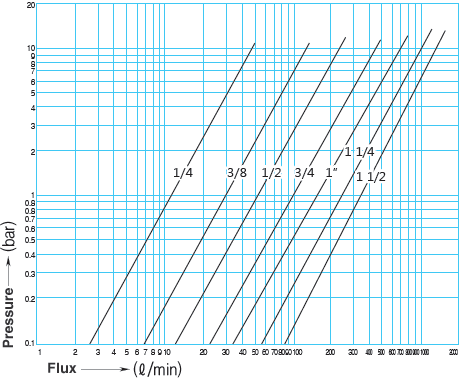

Flux&Pressure

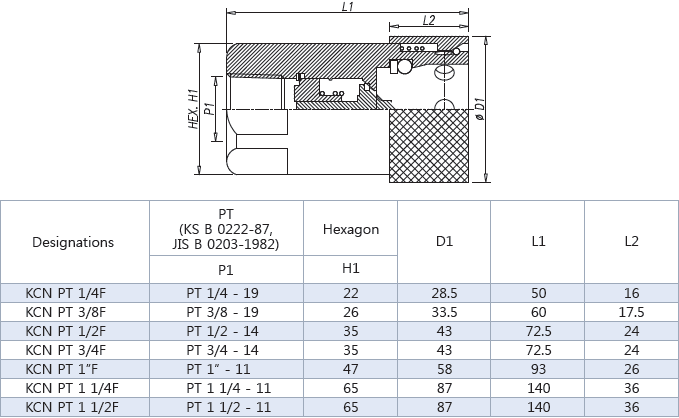

FEMALE CONNECTOR

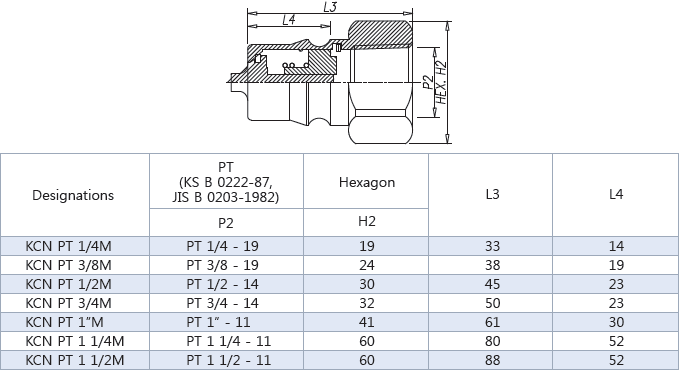

MALE CONNECTOR
