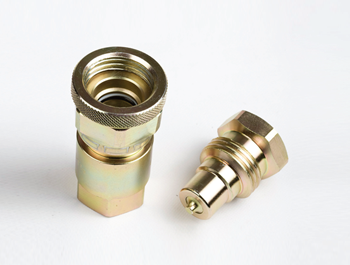

Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KSC
Product Info
- KSC series are specially designed for extremely high pressure and flux
- Easy cleaning ideal for polluted environments
- Adopted for hydraulic devices in agriculture, forestry, special vehicles, and other hydraulic systems
Compatibility
FASTER VVS
Specification
| Body Material | STEEL, SUS(303, 316) | ||||||
|---|---|---|---|---|---|---|---|
| Size | 1/4 | 3/8 | 1/2 | 3/4 | 1" | 1 1/4 | 1 1/2 |
| Pressure Capacity (kgf/cm2) |
380 | 350 | |||||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | ||||
| VITON | -20℃~+130℃ | standard | |||||
| NBR | -20℃~+80℃ | Non-standard | |||||

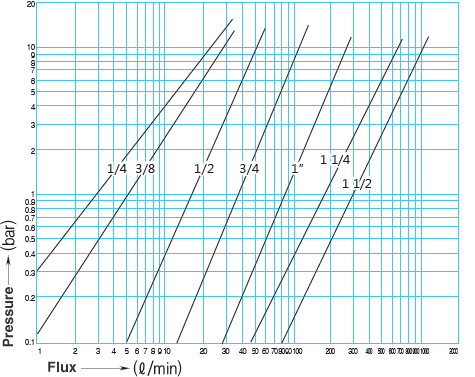

Flux&Pressure

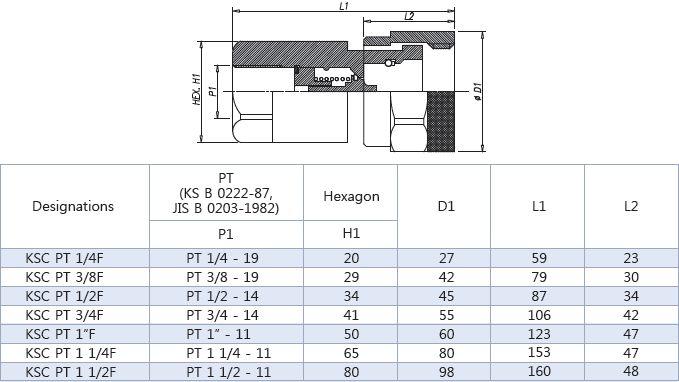

FEMALE CONNECTOR

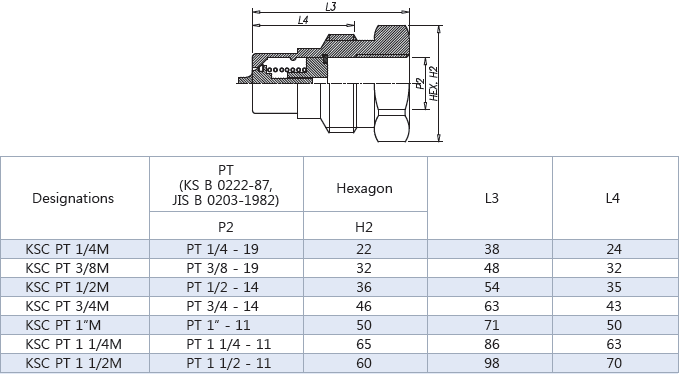

MALE CONNECTOR
