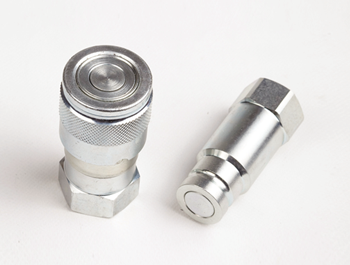

Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KFL
Product Info
- KFL series complies with ISO 16028 standard
- A quick coupler with the dual-closing function
- Easy cleaning ideal for polluted environments
Compatibility
PARKER FE, FASTER FF, CEJN X62
Specification
| Body Material | STEEL | |||
|---|---|---|---|---|
| Size | 1/4 | 3/8 | 1/2 | 3/4 |
| Pressure Capacity (kgf/cm2) |
310 | 250 | ||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | |
| VITON | -20℃~+130℃ | standard | ||
| NBR | -20℃~+80℃ | Non-standard | ||

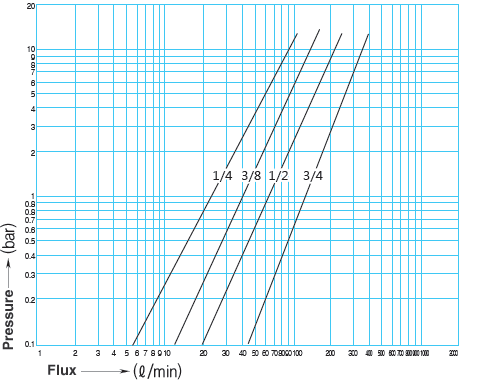

Flux&Pressure

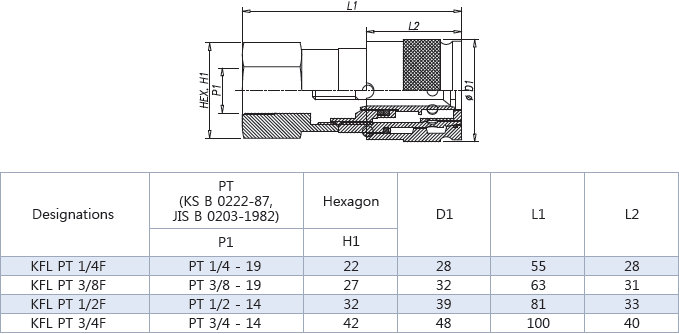

FEMALE CONNECTOR

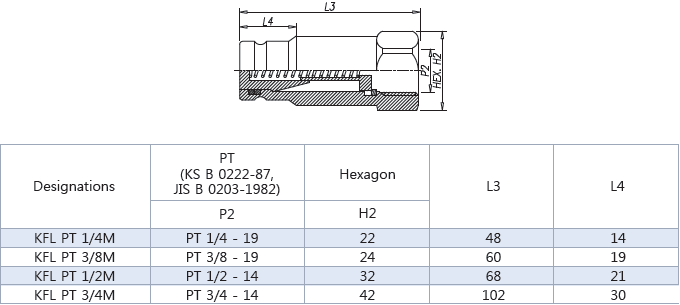

MALE CONNECTOR
