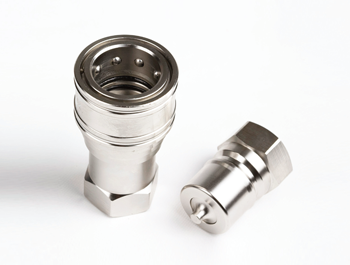

Hydraulic Pressure Coupler
A leading company in domestic hydraulic coupler industry
Series KCB
Product Info
- KCB series complies with the standards for ISO 7241 – 1 series B
- A quick coupler with the dual-closing function
- Adopted for complicated hydraulic devices in such areas as industry, construction, forestry, and machinery
Compatibility
PARKER 60, FASTER HNV, NITTO SP
Specification
| Body Material | SUS(303,316), BRASS | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1" | 1 1/4 | 1 1/2 | 2" |
| Pressure Capacity (kgf/cm2) |
50 | 40 | 30 | ||||||
| Rubber Materials Range of Temperature |
Rubber Materials | Range of Temperature | Others | ||||||
| VITON | -20℃~+130℃ | standard | |||||||
| NBR | -20℃~+80℃ | Non-standard | |||||||

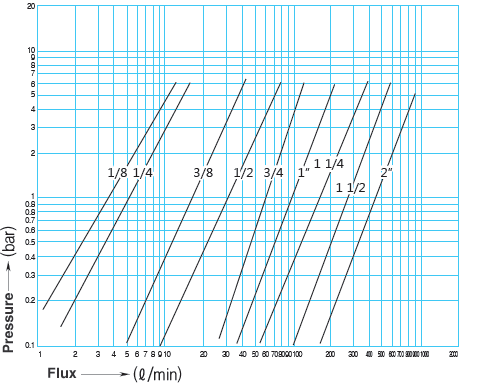

Flux&Pressure

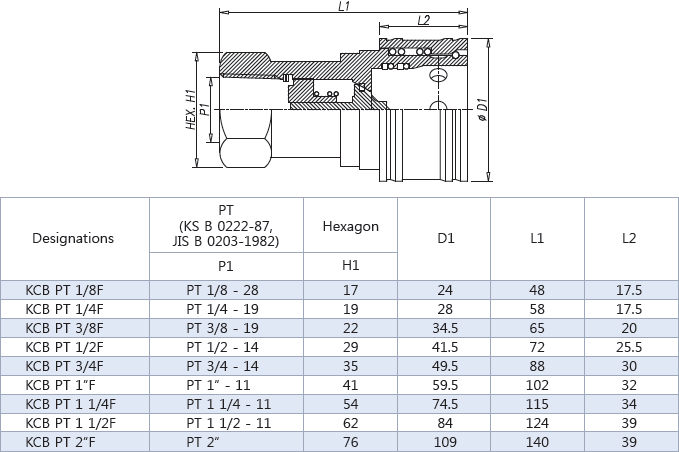

FEMALE CONNECTOR

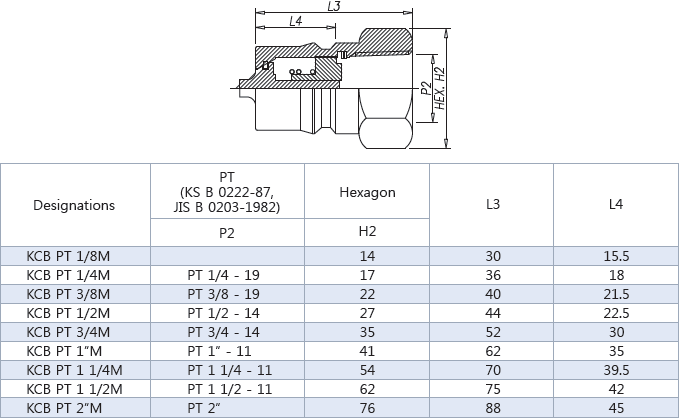

MALE CONNECTOR
